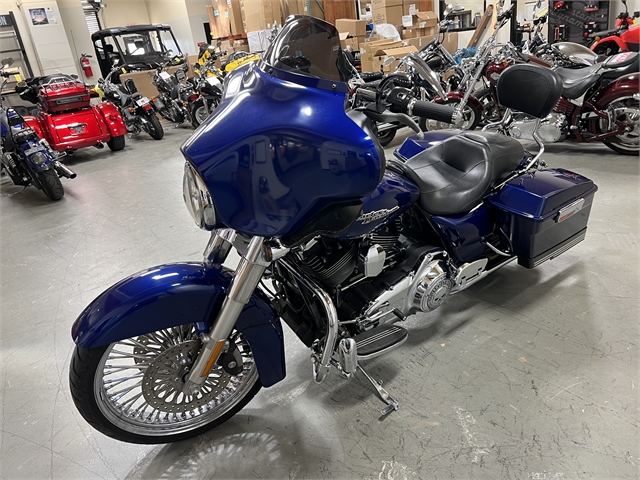

2013 Harley-Davidson FLHX- Street Glide

Stock #617162
Your Price: $17,990

276 people have recently viewed it.
Call for Pricing Hi, my name is and I'm interested in this 2013 Harley-Davidson FLHX- Street Glide . I'm in the area and you can reach me at or on my phone at .

FISHTAIL EXHAUST, 21" FAT SPOKE FRONT WHEEL, BACKREST, PASSENGER FLOORBOARDS, LA CHOPPERS BARS

  • Status:
    Pre-Owned
  • Vehicle:
    2013 Harley-Davidson FLHX- Street Glide
  • VIN:
    1HD1KBM10DB617162
  • Model Number:
    FLHX
  • Mileage:
    33,228 miles
  • Color:
    Deep Cobalt
  • Stock Number:
    617162
  • Location:
    Green Mount Road Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Harman/Kardon
  • Number Of Discs:
    1
  • Number Of Speakers:
    2

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Diameter (in):
    11.5
  • Front Brake Diameter (mm):
    292.1
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Diameter (in):
    11.5
  • Rear Brake Diameter (mm):
    292.1
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.88
  • Bore (mm):
    98.6
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.6
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1687.9
  • Displacement (ci):
    103
  • Engine Brand Name:
    Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.3
  • Torque (Ft Lbs):
    100
  • Torque (Nm):
    135.6
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Passenger
  • Fork Guards:
    Yes
  • Frame:
    Steel
  • Hand Guards:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Height:
    Low
  • Tinted:
    Yes
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    27.1
  • Seat Height (mm):
    662.9
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    355.2
  • Dry Weight (lbs):
    783
  • Engine Displacement to Weight (cc):
    2.16
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    4.7
  • Ground Clearance (mm):
    119.4
  • Length (ft):
    7.92
  • Length (ft/ft):
    7
  • Length (ft/in):
    11
  • Length (in):
    95
  • Length (mm):
    2413
  • Wet Weight (kg):
    367.9
  • Wet Weight (lbs):
    811
  • Wheelbase (in):
    63.5
  • Wheelbase (mm):
    1612.9

TRANSMISSION

  • Gear Ratio (1):
    9.59
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.94
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.41
  • Gear Ratio (6):
    2.88
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® Multi-Tread® 130/70 R18 63H
  • Front Tire Aspect Ratio:
    70
  • Front Tire Speed Rating:
    63H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    18
  • Rear Tire (Full Spec):
    Dunlop® Multi-Tread® 180/65 R16 81H
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Speed Rating:
    81H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
