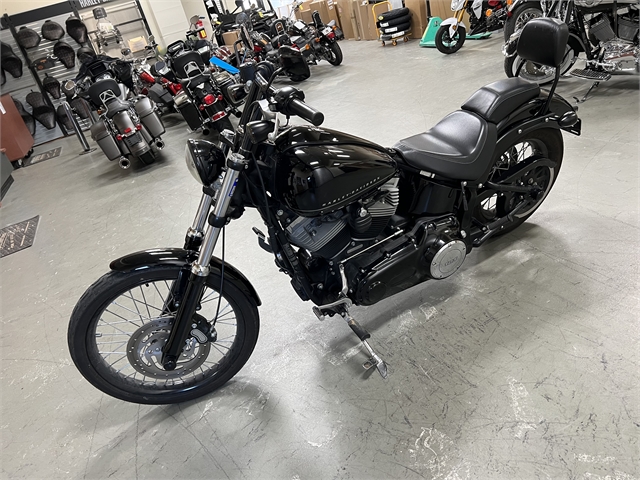

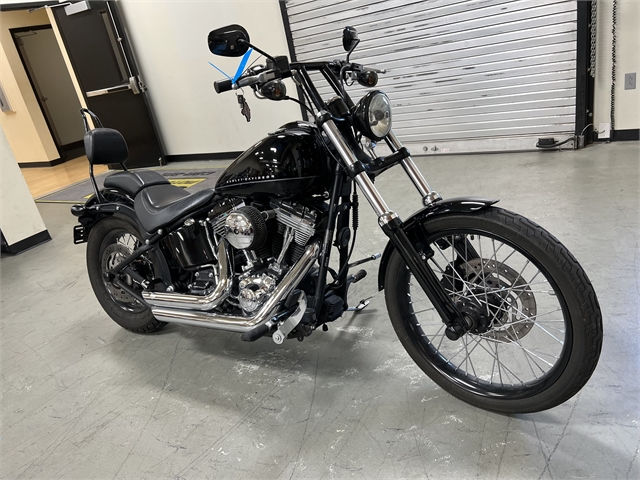

2012 Harley-Davidson FXS- Softail Blackline

Stock #016103
Your Price: $12,990

159 people have recently viewed it.
Call for Pricing Hi, my name is and I'm interested in this 2012 Harley-Davidson FXS- Softail Blackline . I'm in the area and you can reach me at or on my phone at .

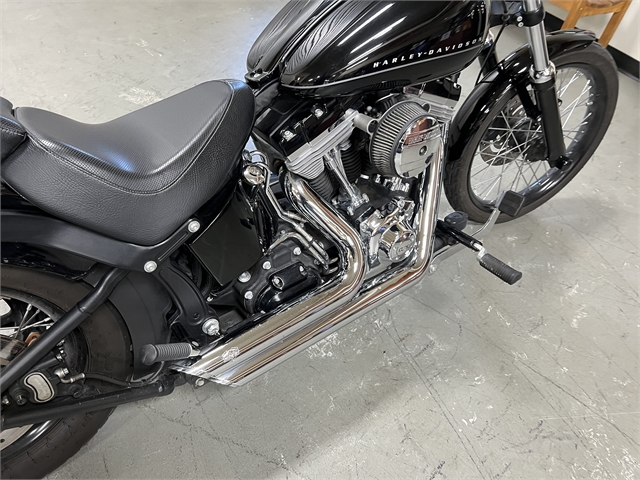

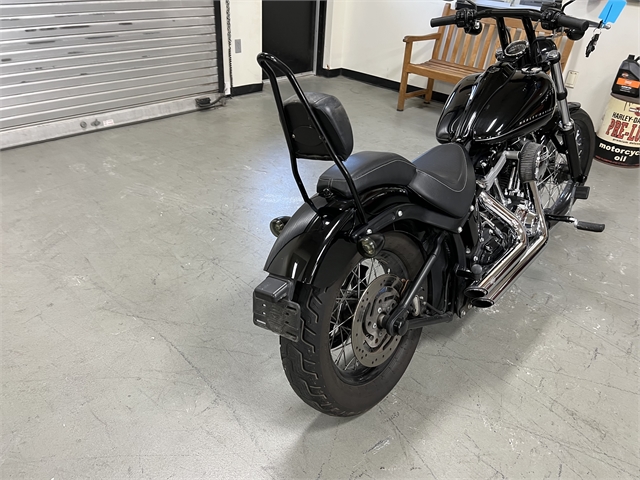

VANCE&HINES SHORTSHOTS, BACKREST, T-BARS

  • Status:
    Pre-Owned
  • Vehicle:
    2012 Harley-Davidson FXS- Softail Blackline
  • VIN:
    1HD1JPV17CB016103
  • Model Number:
    FXS
  • Mileage:
    19,845 miles
  • Color:
    Vivid Black
  • Stock Number:
    016103
  • Location:
    Green Mount Road Harley-Davidson
  • Warranty:
    As Is

BRAKES

  • Front Brake Diameter (in):
    11.5
  • Front Brake Diameter (mm):
    292.1
  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Diameter (in):
    11.5
  • Rear Brake Diameter (mm):
    292.1
  • Rear Brake Type:
    Hydraulic Disc

ENGINE

  • Bore (in):
    3.88
  • Bore (mm):
    98.5
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.6
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1687.9
  • Displacement (ci):
    103
  • Engine Brand Name:
    Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.38
  • Stroke (mm):
    111.3
  • Torque (Ft Lbs):
    98.7
  • Torque (Nm):
    133.8
  • Torque RPM:
    3250
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    24
  • Seat Height (mm):
    610
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    Two-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Suspension Size (in):
    1.6
  • Front Suspension Size (mm):
    41.3
  • Front Suspension Type:
    Telescopic Fork
  • Front Travel (in):
    5.6
  • Front Travel (mm):
    143
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm
  • Rear Travel (in):
    3.6
  • Rear Travel (mm):
    91

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    290
  • Dry Weight (lbs):
    638.5
  • Engine Displacement to Weight (cc):
    2.48
  • Fuel Capacity (gal):
    5
  • Fuel Capacity (l):
    18.9
  • Ground Clearance (in):
    5.3
  • Ground Clearance (mm):
    133
  • GVWR (kgs):
    510
  • GVWR (lbs):
    1124
  • Length (ft):
    7.75
  • Length (ft/ft):
    7
  • Length (ft/in):
    9
  • Length (in):
    93
  • Length (mm):
    2362
  • Wet Weight (kg):
    310
  • Wet Weight (lbs):
    682.5
  • Wheelbase (in):
    66.5
  • Wheelbase (mm):
    1689

TRANSMISSION

  • Gear Ratio (1):
    9.31
  • Gear Ratio (2):
    6.45
  • Gear Ratio (3):
    4.79
  • Gear Ratio (4):
    3.88
  • Gear Ratio (5):
    3.31
  • Gear Ratio (6):
    2.79
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® MH90-21 54H
  • Front Tire Aspect Ratio:
    90
  • Front Tire Speed Rating:
    54H
  • Front Wheel Diameter:
    21
  • Front Wheel Width (in):
    2.15
  • Rear Tire (Full Spec):
    Dunlop® MU85 B16 77H
  • Rear Tire Aspect Ratio:
    85
  • Rear Tire Speed Rating:
    77H
  • Rear Wheel Diameter:
    16
  • Rear Wheel Width (in):
    3
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
