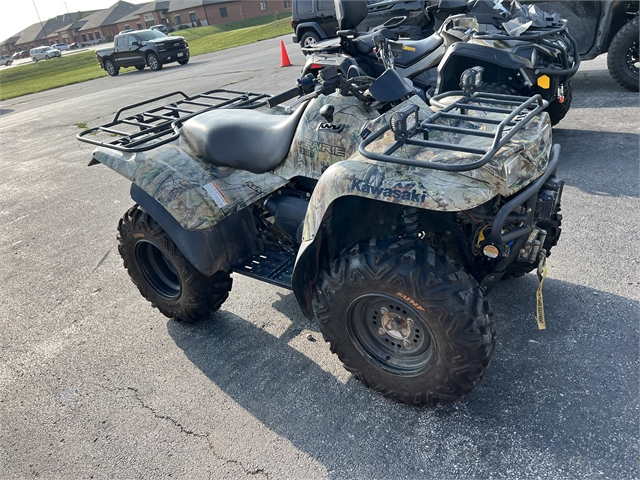

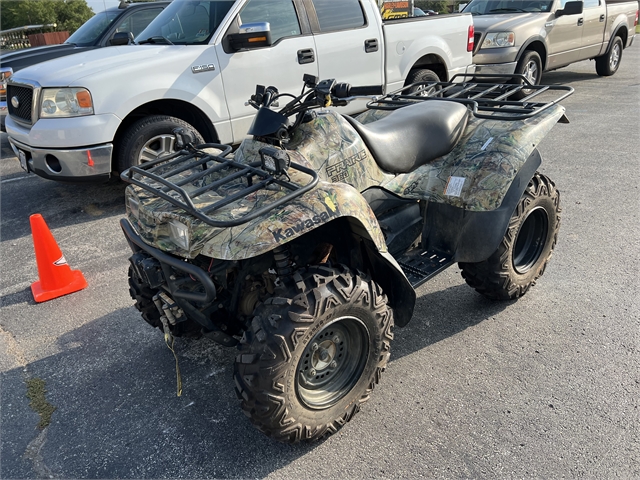

2011 Kawasaki Prairie 360 4x4 (Camo)

Stock #519849
Your Price: $2,990
Call for Pricing Hi, my name is and I'm interested in this 2011 Kawasaki Prairie 360 4x4 (Camo) . I'm in the area and you can reach me at or on my phone at .
  • Status:
    Pre-Owned
  • Vehicle:
    2011 Kawasaki Prairie 360 4x4 (Camo)
  • VIN:
    JKBVFHC18BB519849
  • Model Number:
    KVF360C
  • Color:
    Realtree® APG™ HD™ Camouflage
  • Stock Number:
    519849
  • Location:
    Green Mount Road Harley-Davidson
  • Warranty:
    As Is

BRAKES

  • Engine Braking Brand Name:
    K-EBC™
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Sealed Oil Bath Multi-Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    3.15
  • Bore (mm):
    80
  • Carburetion Brand:
    Keihin
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    34
  • Carburetor:
    Yes
  • Compression Ratio:
    8.3
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    362
  • Displacement (ci):
    22.1
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Starter:
    Electric / Pull
  • Stroke (in):
    2.84
  • Stroke (mm):
    72
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    2

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • Adjustable:
    Yes
  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Foot Peg Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    35.2
  • Seat Height (mm):
    894.1
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

STORAGE

  • Capacity (kgs):
    39.9
  • Capacity (kgs):
    69.9
  • Capacity (lbs):
    154
  • Capacity (lbs):
    88

SUSPENSION

  • Front Suspension Type:
    McPherson Strut
  • Front Travel (in):
    6.7
  • Front Travel (mm):
    170.2
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Aluminum
  • Rear Suspension Type:
    Swing Arm
  • Rear Travel (in):
    7.1
  • Rear Travel (mm):
    180.3

TECHNICAL SPECIFICATIONS

  • Engine Displacement to Weight (cc):
    0.6
  • Fuel Capacity (gal):
    3.6
  • Fuel Capacity (l):
    13.6
  • Fuel Capacity Reserve (gal):
    1
  • Fuel Capacity Reserve (l):
    3.6
  • Ground Clearance (in):
    7.3
  • Ground Clearance (mm):
    185.4
  • Height (in):
    45.1
  • Height (mm):
    1145.5
  • Length (ft):
    6.78
  • Length (ft/ft):
    6
  • Length (ft/in):
    9.3
  • Length (in):
    81.3
  • Length (mm):
    2065
  • Towing Capacity (kgs):
    499
  • Towing Capacity (lbs):
    1100
  • Wet Weight (kg):
    292.1
  • Wet Weight (lbs):
    643.9
  • Wheelbase (in):
    49.4
  • Wheelbase (mm):
    1254.8
  • Width (in):
    47.4
  • Width (mm):
    1204

TRANSMISSION

  • Final Drive Ratio:
    4.37
  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® 25 X 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Maxxis® 25 X 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Maxxis®
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
